PARALLEL_NPN_BASIC_LOGIC

Published:2009/7/16 3:54:00 Author:Jessie | From:SeekIC

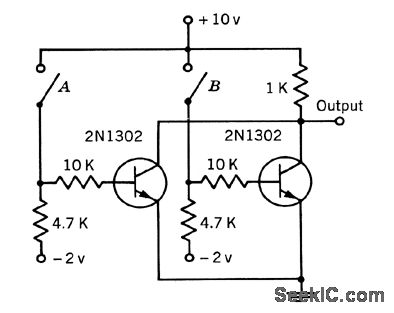

Serves as or gate for normally open switches and as and gate for normally closed switches. Provides phase inversion of input.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 388.
