PANORAMIC_FRONT_END

Published:2009/7/23 21:45:00 Author:Jessie | From:SeekIC

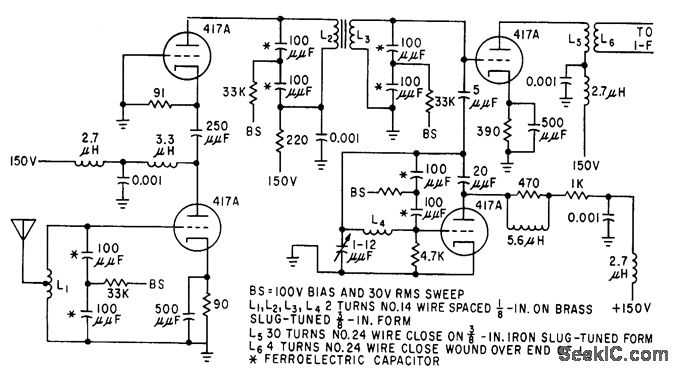

Can be made as three plug-in units, each containing the electrically tunable r-f, mixer, and local oscillator stages to cover 35 to 70, 70 to 130, and 130 to 200 Mc. Each plug-in front end has eight voltage-tunable ferroelectric tuners.-T. W. Butler, Jr., Ferroelectrics Tune Electronic Circuits, Electronics, 32:3, p 52-55.
