PAIRED_INVERTERS

Published:2009/7/14 20:46:00 Author:May | From:SeekIC

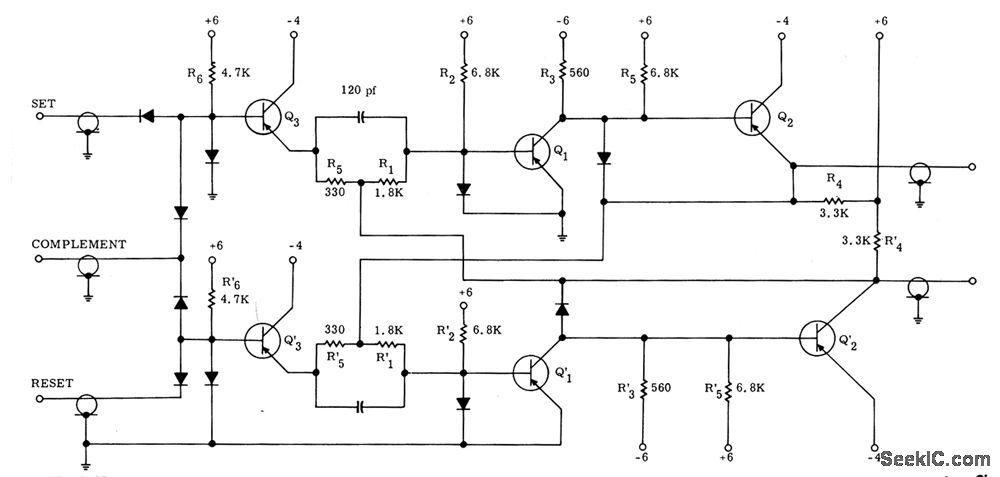

Cross-coupling of two basic inverters gives low-cost lip-lop using 2N711 germanium pnp mesa switching transistors. Flip-flop can be set and then reset, or run as Gaunter using combined input. Close regulation is required for -4 v supply.-P. A. Mclnnis, Low-Cost Computer Circuits, Motorola Application Note AN-130, Nov. 1965.
