P012404UD Frequency Synthesizer Integrated Circuit

Published:2011/7/27 9:55:00 Author:Michel | Keyword: Frequency Synthesizer, Integrated Circuit | From:SeekIC

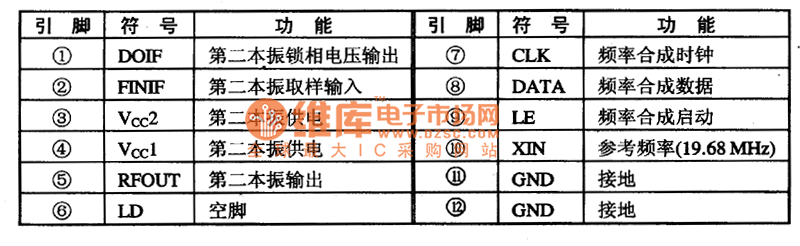

P012404UD is a kind of frequency synthesizer integrated circuit which is widely used in samsung mobile phones, such as CDMA series samsung A599 cell phones, etc. First,Functions FeaturesPO12404UD integrated circuit contains the second phase lock voltage circuit,second vibration vibration power supply circuit, data circuit, frequency synthesis start-up circuit, reference frequency circuit and some auxiliary function circuit. Second,Pins FunctionsPO12404UD integrated circuits uses 12 feet 4 columns encapsulation.And pins functions of frequency synthesis clock circuit and its integrated circuit are shown as table 1. Table 1:PO12404UD IC Pins Functions
