Ozone disinfector 12

Published:2011/6/30 1:36:00 Author:Nicole | Keyword: ozone disinfector | From:SeekIC

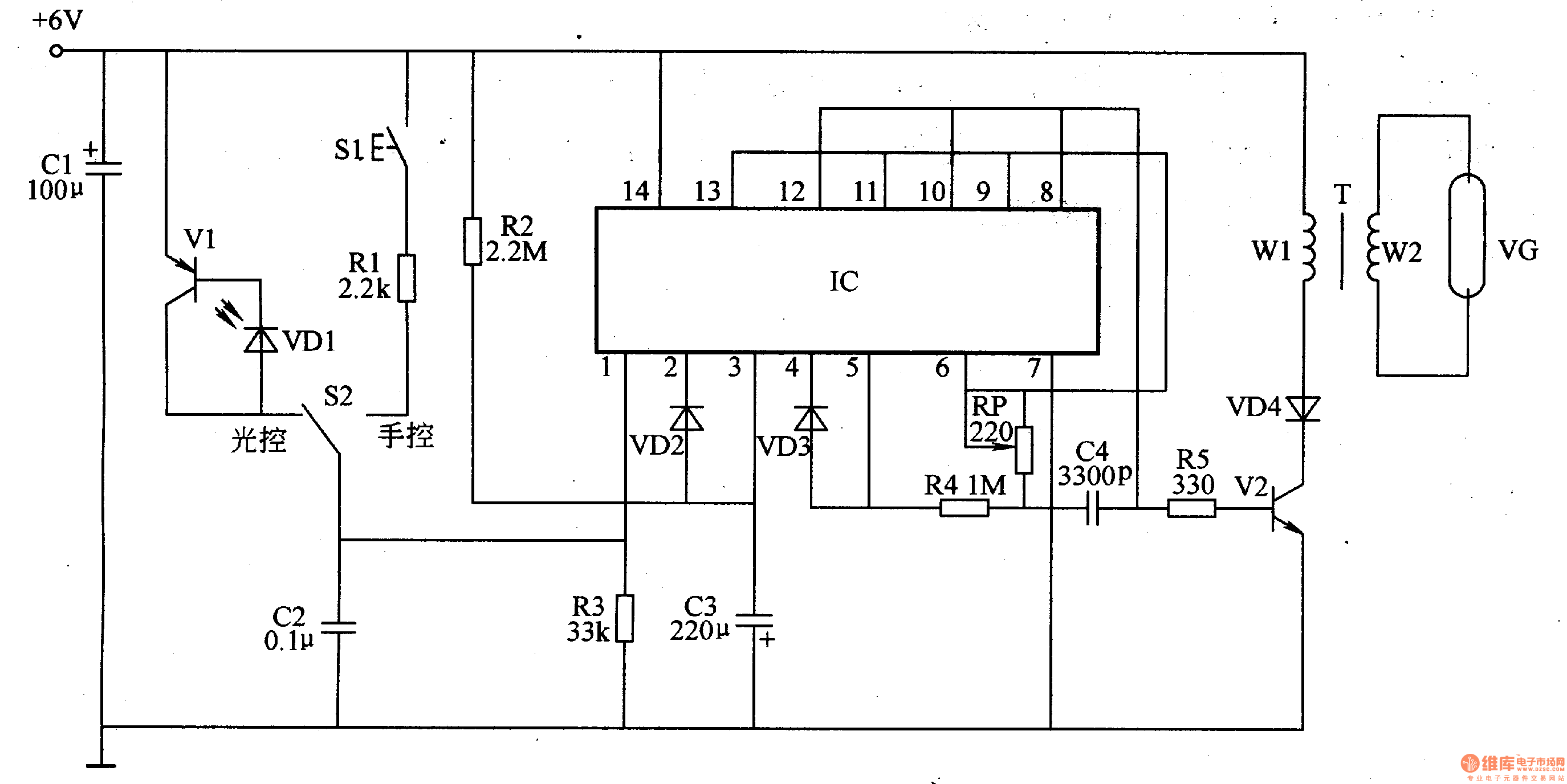

The ozone disinfector circuit is composed of hand control/optical control convert circuit, delay control circuit, oscillator and high voltage generator circuit, it is shown in the figure 9-109. The hand control/optical control convert circuit is made of photosensitive diode VD1, transistor V1, transfer switch S2, hand control button S1, resistor R1. The delay control circuit consists of six not gates integrated circuit IC, resistor R3, capacitors C2, C3 and diodes VD2, VD3. The oscillator circuit is composed of IC and resistors R2, R4, potentiometer RP, capacitor C4.
