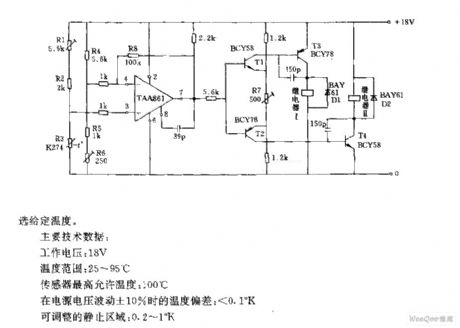

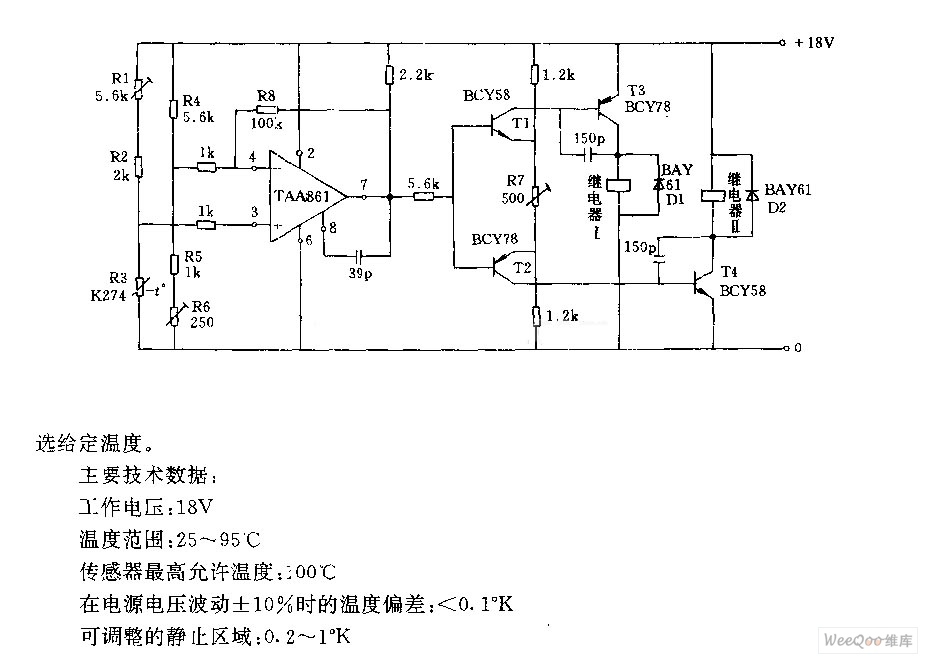

Temperature regulation circuit diagram used in valve control

Published:2011/6/18 10:04:00 Author:Nancy | Keyword: temperature regulation, valve control | From:SeekIC

Main technical data:operating voltage: 18Vtemperature range: 25 to 95 ℃sensor maximum allwable temperature: 100 ℃temperature bias under ±10% power supply fluctuation: ＜0.1°Kadjustable static area: 0.2 to 1°K
