TDAl077 Microcomputer Dialing Integrated Circuit

Published:2011/7/19 11:29:00 Author:Michel | Keyword: Microcomputer, Dialing Integrated Circuit | From:SeekIC

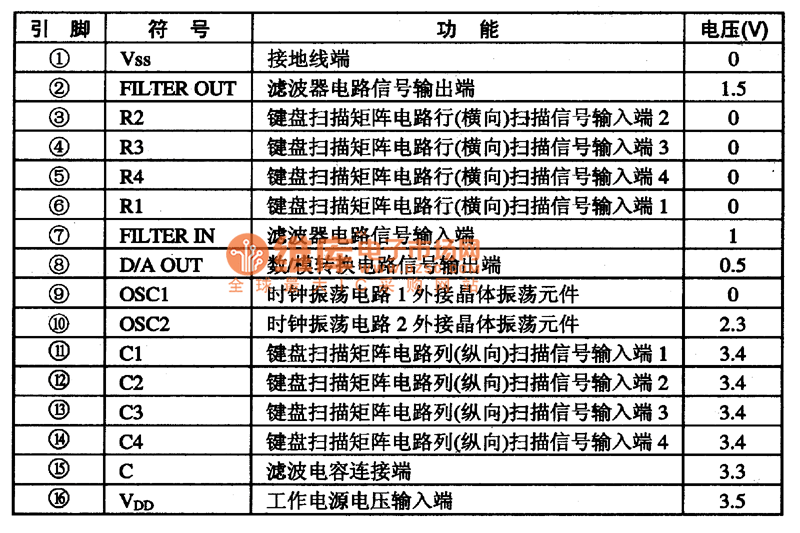

TDAl077 microcomputer dialing integrated circuit is often used in kinds of telephones. One Functions and Features TDA1077 integrated circuit contains key switch signal coder and dial signal processing circuit etc. Two Pins Functions and Data The pins function and data of TDA1077 integrated circuit are shown as table 3. Table:Pins Functions and Data of TDA107 IC
