SYNC_STRETCHER_CIRCUIT

Published:2009/6/24 3:27:00 Author:May | From:SeekIC

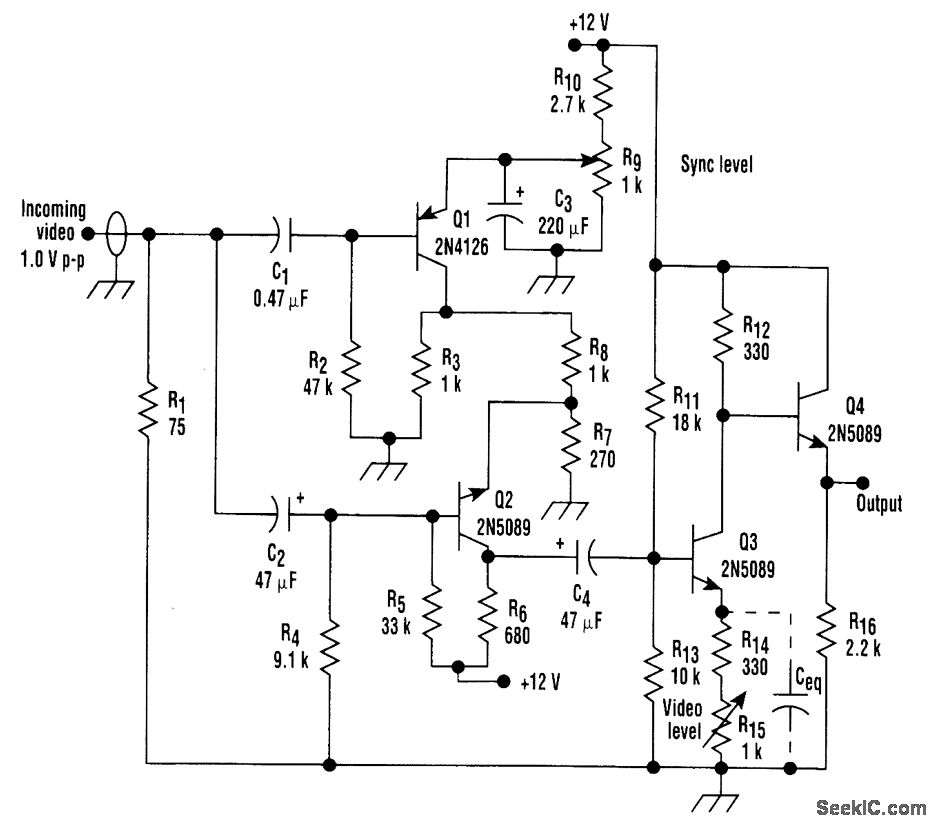

Q1, Q2, and Q3 comprise a simple video amplifier and sync stretch circuit. Transistor Q1 sync strips the incoming video, which is amplified and mixed with the stripped sync in Q2. Q3 supplies in-version and video amplitude control.
