STR51213 Switch Power Thick Membrane Integrated Circuit

Published:2011/7/19 11:28:00 Author:Michel | Keyword: Switch Power, Thick Membrane, Integrated Circuit | From:SeekIC

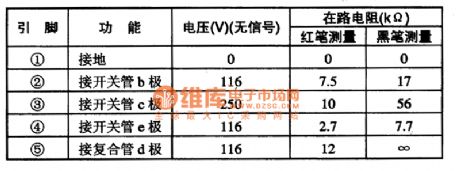

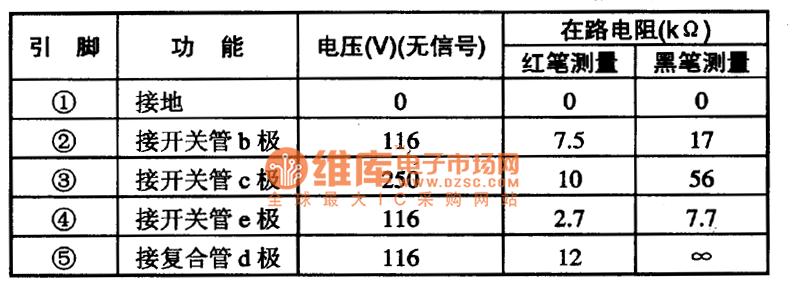

STR51213 is switch power thick membrane integrated circuit of SANKEN and it is widely used in Panasonic D series big screen color TV. One Functions and Features STR51213 integrated circuit contains sampling signal processing circuits, incentive drive control circuit, switch tube, and other auxiliary functions circuit. Two Pins and Data STR51213 integrated circuit uses pins single in-line package and its pins functions and data are shown as table 1. Table:Pins Functions and Data of STR51213 IC Note ：STR51213 can substitute for STR50203 and STR50213 directly.
