PCF8596 Microcomputer and Auxiliary Function Integrated Circuit

Published:2011/7/29 0:01:00 Author:Michel | Keyword: Microcomputer, Auxiliary Function, Integrated Circuit | From:SeekIC

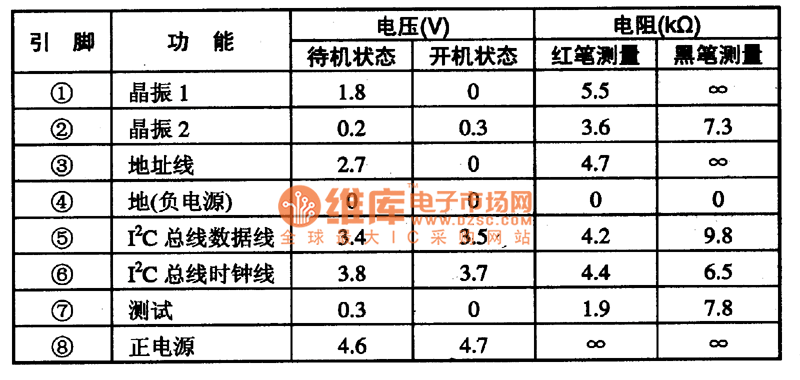

PCF8596 is PCF8596 microcomputer and the auxiliary function integrated circuit produced by Philips Company and it is widely used in ChangHong series color TVs. First,Functions Features Inside Assitant Circuit of PCF8596 Integrated CircuitPCF859 IC adopts 8 feet DIP package and its pins functions and data are shown as table 1 and the data is measured from ChangHong CN-15 big screen color TV. Table 1:PCF8596 IC Pins Fuctions and Data
