P83C266BDR Single-chip Microcomputer Integrated Circuit

Published:2011/7/17 6:32:00 Author:Michel | Keyword: Microcomputer Integrated Circuit | From:SeekIC

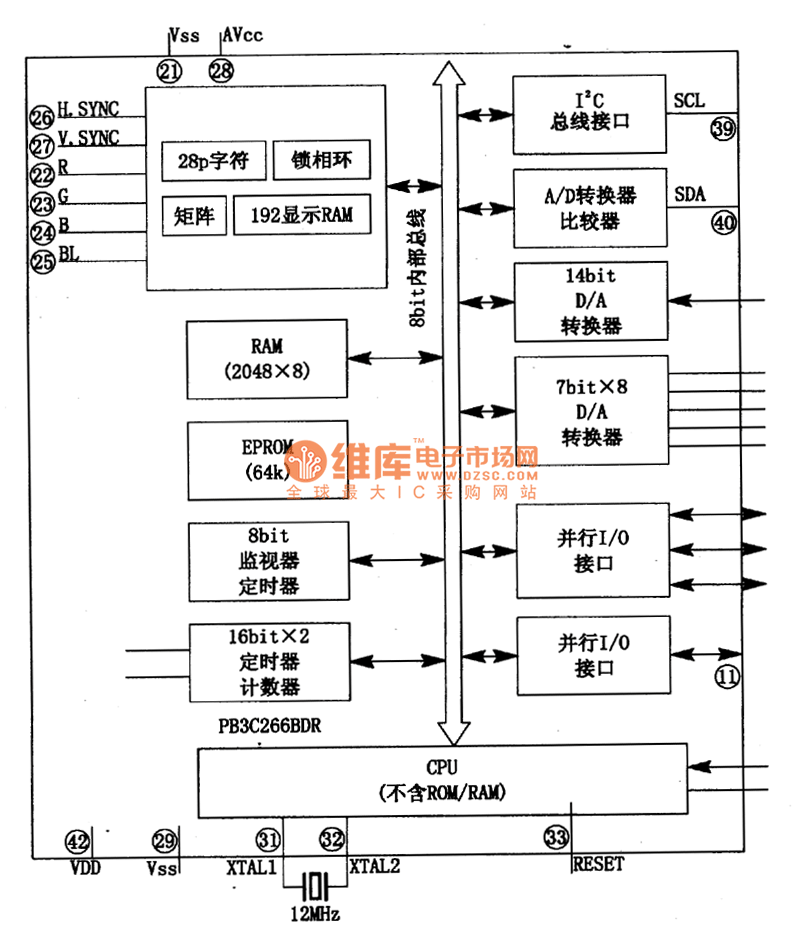

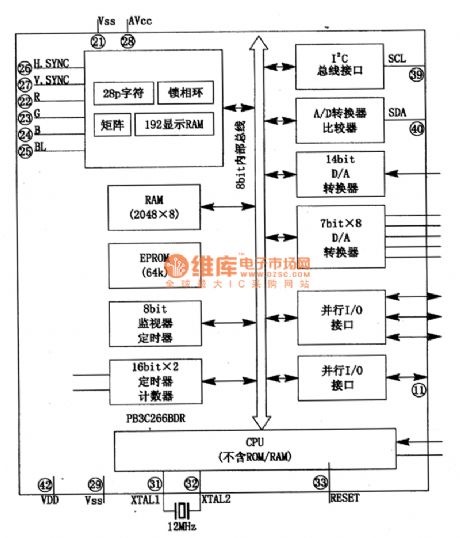

P83C266BDR is latest eight high speed digital CMOS central microcomputer monolithic integrated circuit prdoduced by Philips.It is designed for Konka series mirror TVs, such as P3486C type machine etc. First,Fucntions P83C266BDR integrated circuit contains the central microprocessor (CPU), electric programmable read-only memory (an EPROM), random access memory (RAM), input and output interface (I/O), l6 bit timer/counter, A/D and D/A, OSD generator, the I2C bus SCL, SDA serial interface and pulse width modulation (PWM) circuit components etc.The inside circuit of the intergrated block is shown as picture 1. Picture 1:The Inside Circuit of Intergrated Circuit
