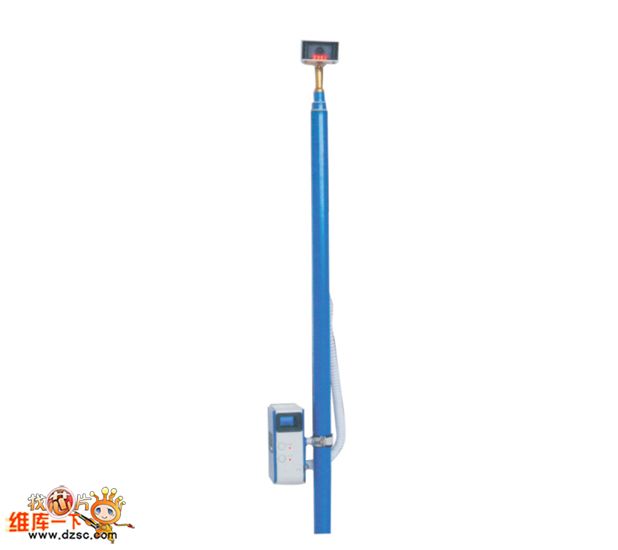

Micro meter-copy device changes electric meter into electrical signals via special camera images and it is transfered to LCD display via transmission lines.Special cameras and LCD monitor are connected together via adjustable aluminum alloy bars.Meter reading electrician can adjust aluminum alloy bars and make the top special cameras aim at electric meter so that he can see the electric meter degree in the bottom of the LCD monitor.Micro LCD visual meter-copy device isespecially designed according to the meter's measuring boxes. It consists of sunshades, adjustable auxiliary illuminant and iminiature camera etc.
