Frequency Synthesizer Integrated Circuit of S14133T

Published:2011/8/25 22:46:00 Author:Michel | Keyword: Frequency Synthesizer, Integrated Circuit | From:SeekIC

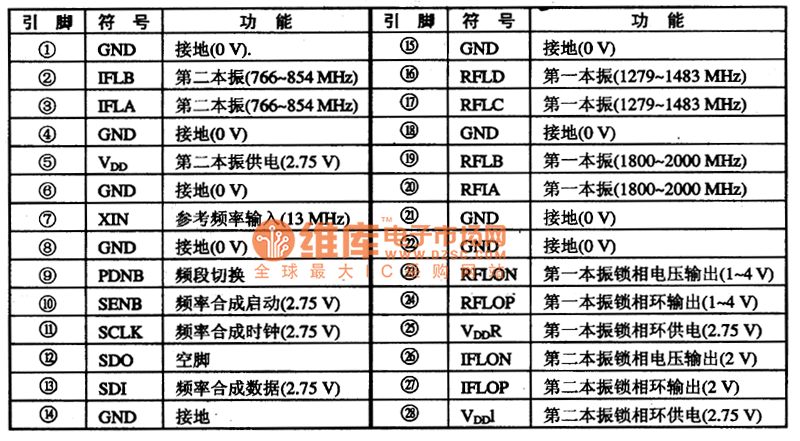

S14133T is frequency synthesizer integrated circuit and it is widely used in cellphones,such as TCL18 cellphones etc. First,Functions Features S14133T integrated circuit contains first and second vibration,phase lock loop circuit, frequency synthesizer, clock and data circuit. Second,Pins Functions and DataS14133T integrated circuit uses 28 feet and 4 columns flat type encapsulation,which is same as the S14133一MLP28 of Samsung A200 and A288 mobile phones but they could not exchange with each other.S14133T IC pins functions and data are shown as table 1. Table 1:S14133T IC Pins Functions
