FUZZ_BOX_1

Published:2009/7/1 4:11:00 Author:May | From:SeekIC

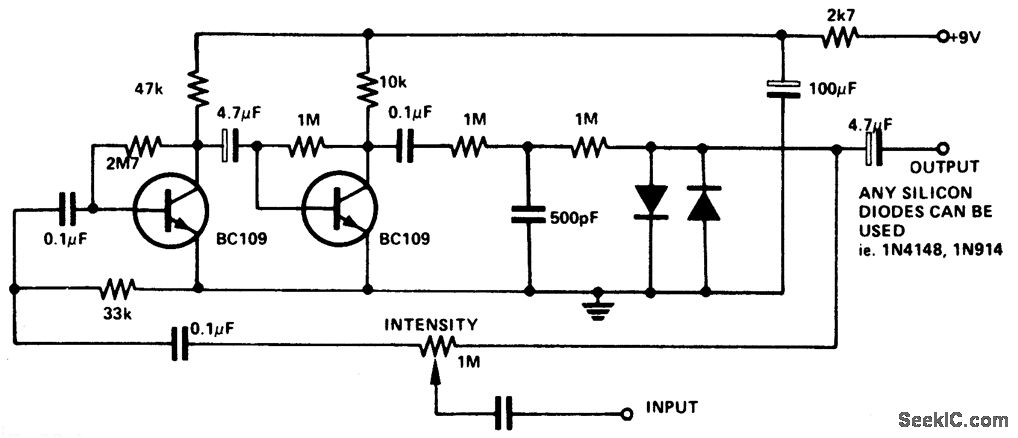

Circuit NotesThe input signal is amplified by the transistors. The distorted output is then clipped by the two diodes and the high frequency noise is filtered from the circuit via the 500 pF capacitor. The 1 M pot adjusts the intensity of fuzz frog maximum to no fuzz (normal the playing).
