Automatic cycle timer circuit diagram

Published:2011/8/11 2:42:00 Author:Rebekka | Keyword: Automatic cycle timer | From:SeekIC

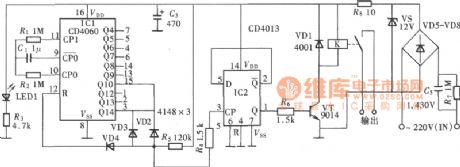

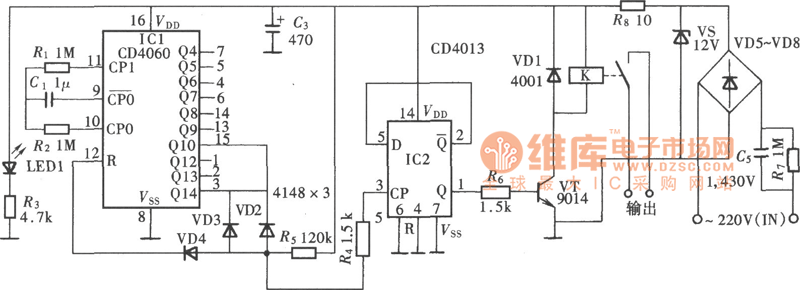

Automatic cycle timer circuit diagram is shown as above. It is composed of pulse oscillator, time base circuit composed of multi-level divider, double-contact state trigger, the relay, driver circuit and the power supply etc.
