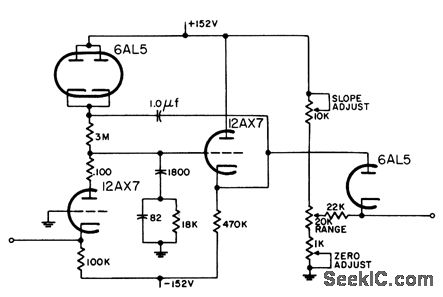

O_to_2440_MICROSEC_BOOTSTRAP_DELAY

Published:2009/7/15 3:28:00 Author:Jessie | From:SeekIC

Is triggered by gating mvbr. Receives control voltage from ten-turn potentiometer calibrated in distance units. Output drives blocking oscillator through transformer. Accuracy is about 1% of delay setting.-NBS, Hand-book Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N9-2.
