OVERLOAD_PROTECTION

Published:2009/7/14 5:37:00 Author:May | From:SeekIC

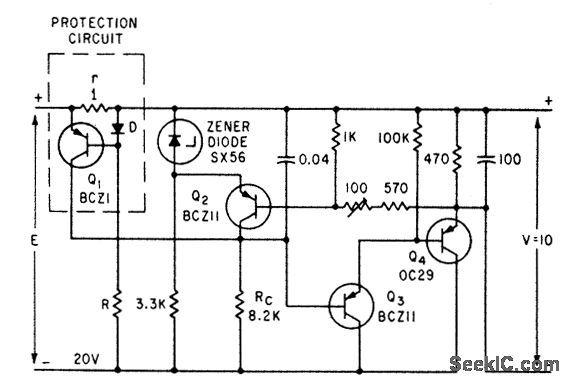

Protection circuit detects excessive load current and reduces output voltage proportionately. Values shown limit output current to 530 ma for short-circuit, while holding output voltage at 10 v during normal operation.-C. Yarker, Over. load Protection Circuit Uses low-Power Transistor, Electronics, 35:13, p 60.
