OUTPHASED_TONE_GENERATOR

Published:2009/7/14 3:47:00 Author:May | From:SeekIC

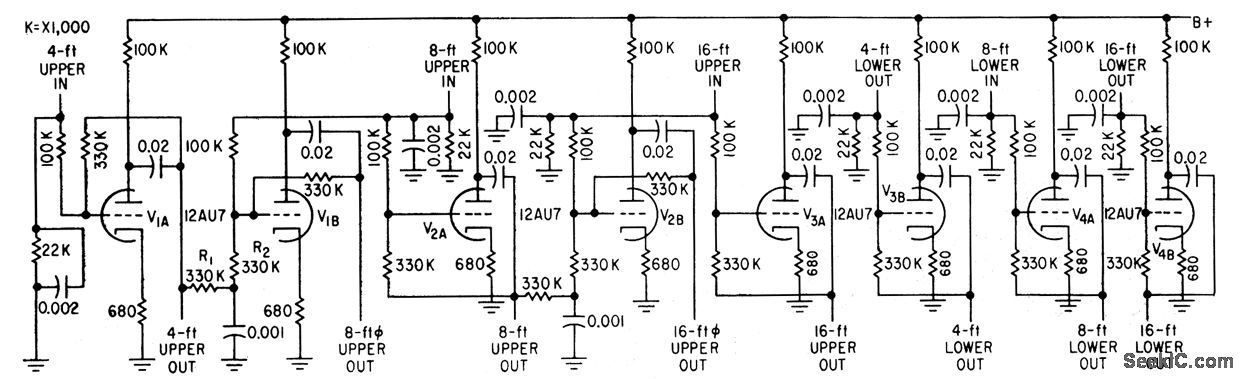

Bus amplifiers located between keying-system outputs and formant filters provide outphosed signals that lack even-harmonic content. Combinations of these produce organ lone colors called for by voicing panel.-R. H. Dorf, Electronic Organ Uses Neon Tone Generators, Electronics, 31:35, p 36-411.
