OR NOT gate circuit

Published:2011/12/5 2:07:00 Author:Ecco | Keyword: OR NOT gate | From:SeekIC

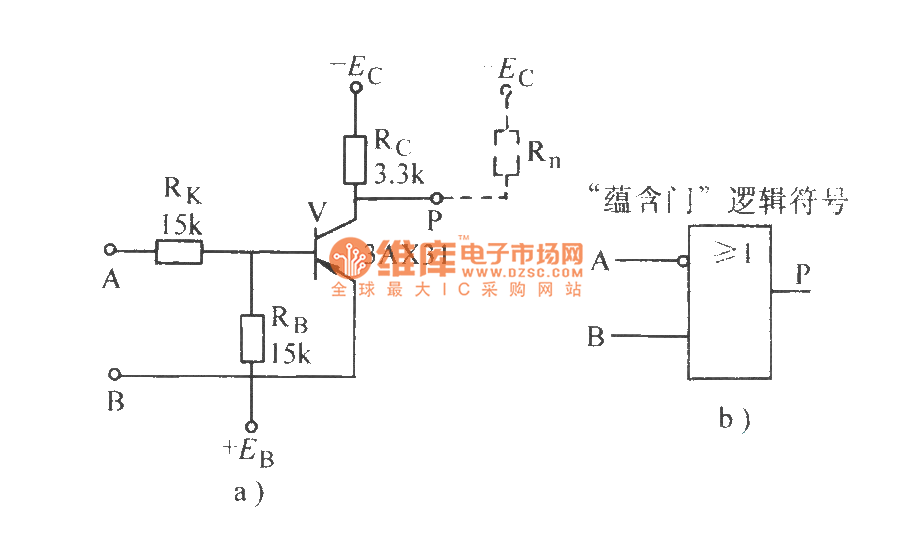

The transistor's emitter is used as the gate circuit of input gate, and it is known as the OR NOT gate, and it isshown in Figure a) . b)shows its logic symbols.
