OP_AMP_RESPONSE_NULL_CIRCUIT

Published:2009/7/13 2:28:00 Author:May | From:SeekIC

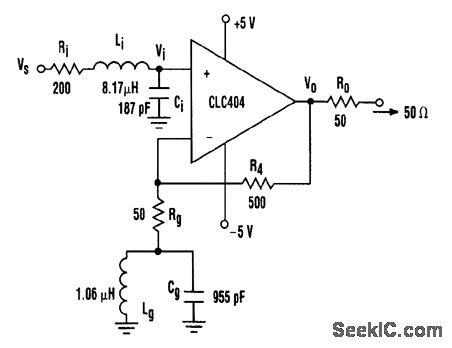

A sharp null can be achieved in a current feedback op amp's frequency response by adding a sharp cutoff filter. The response is modified by adding a resonant circuit in series with the gain-setting resistor Rg.
