OP_AMP_ERROR_SOURCE_CIRCUIT

Published:2009/7/13 2:06:00 Author:May | From:SeekIC

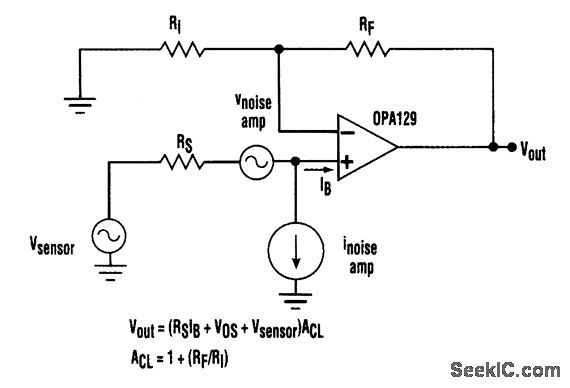

The basic error sources for an op amp are shown referenced to the output. In high-source-imbecome quite dominant. pedance applications, the input bias current terms can become quite dominant.
