OP_AMP_BIAS_PRECAUTION_CIRCUIT

Published:2009/7/13 2:05:00 Author:May | From:SeekIC

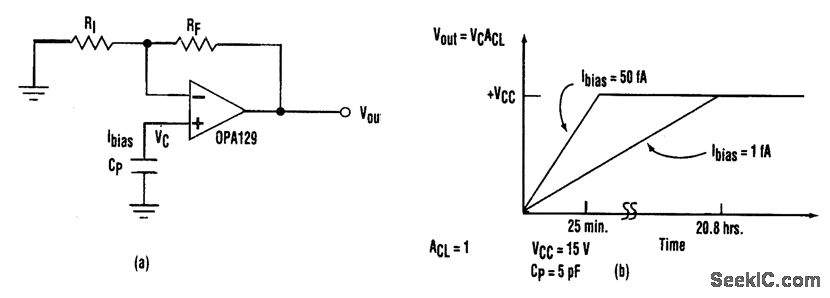

All amplifiers must have a dc path for input-bias current to return to ground (a). Without this path, an amplifier will eventually drift to the output rail (b).
