OPTOISOLATOR_AS_SCANNER

Published:2009/7/6 7:45:00 Author:May | From:SeekIC

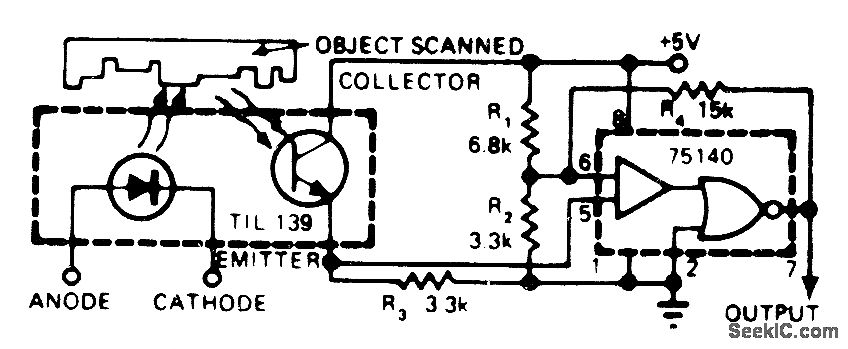

Consists essentially of Texas Instruments TIL 139 source/sensor assembly and common 75140 line receiver. Applications include response to reflected or interrupted light. With 5-V supply, output is at standard TTL levels. To make sensitivity adjustable, insert 500-ohm pot between R1 and R2. To invert output polarity, connect pin 7 of 75140 to pin 3 and take output from pin 1.--W. Grenlund, Low-Cost Photo Scanner Yields High Performance, EDN Magazine, Nov. 20, 1976, p 320.
