OPTOELECTRONIC_CHOPPER_WITH_NEONS

Published:2009/7/10 23:20:00 Author:May | From:SeekIC

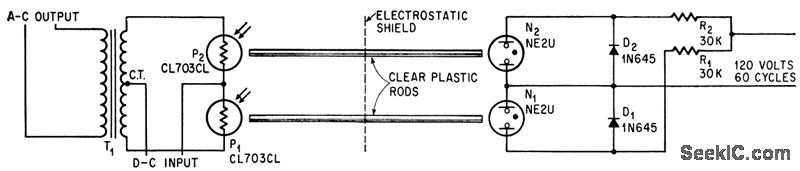

Used with amplifier of sensitive potentiometer recorder.Diodes D1 and D2 short-circuit lamps on alternate half-cycles. Photoelectric chopping eliminates stray interference from a-c line and minimizes heat dissipation problems.-W.Moore,Photoconductors Chop D-C Signal levels,Electronics,38:9,p61-62
