OPTICAL_PROXIMITY_DETECTOR

Published:2009/6/24 3:25:00 Author:Jessie | From:SeekIC

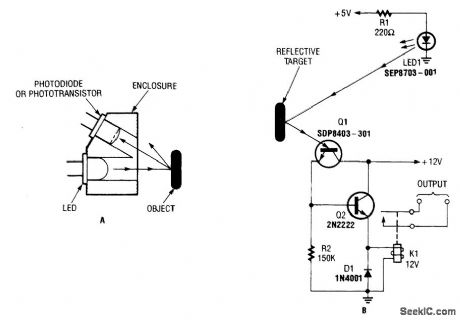

A reflector isolator (A) detects the presence of an object by bouncing light off of it. This tech-nique is useful in circuits that detect when an object is close enough to the sensor (B).
