OPTICAL_DRIVE_FOR_SWITCHING_TRANSISTOR

Published:2009/7/6 7:17:00 Author:May | From:SeekIC

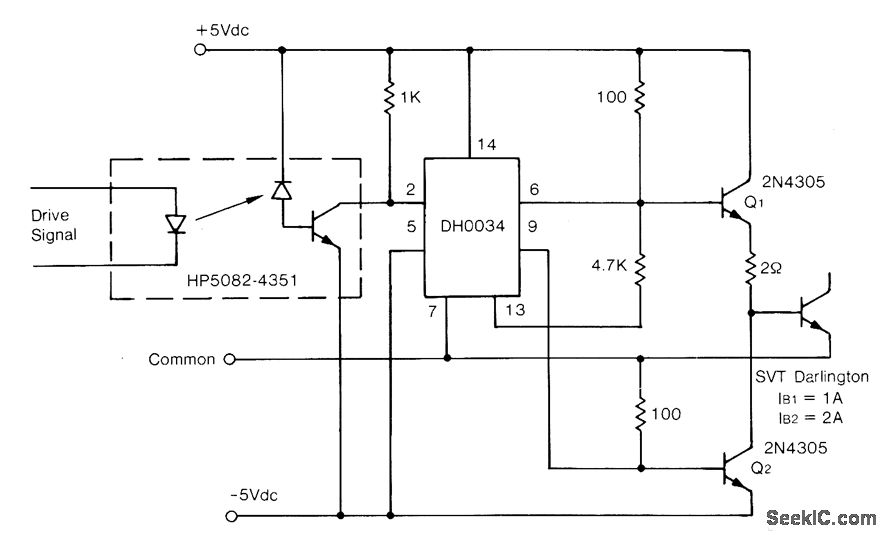

Base driver circuit for TRW SVT6062 power Darlington switching transistor uses separate isolated bias supplies for each transistor to provide performance characteristics of driver transformer at lower cost. Bias supplies can use small 60-Hz transformers with bridge rectifiers and light filtering. Control isolation is provided by high-speed optical coupler that can be controlled directly from logic. DH0034 IC amplifies coupler output and provides level shifting as required for driving transistors Q1 and Q2.-D. Roark, Base Drive Considerations in High Power Switching Transistors, TRW Power Semiconductors, Lawndale, CA, 1975, Application Note No. 120, p 8.
