Ni_CAD_BATTERY_ZAPPER

Published:2009/7/3 3:57:00 Author:May | From:SeekIC

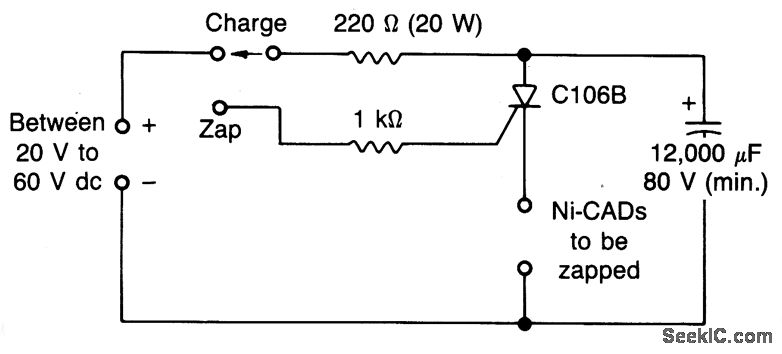

The short in a Ni-Cad battery can be burned off with this zapper. Use of the SCR keeps heavy discharge current from damaging switch contacts.
