N-CH AND P-CH TRANSISTORS FORM PUSH-PULL DRIVER

Published:2012/9/4 20:14:00 Author:Ecco | Keyword: N-CH, P-CH , TRANSISTORS , PUSH-PULL DRIVER | From:SeekIC

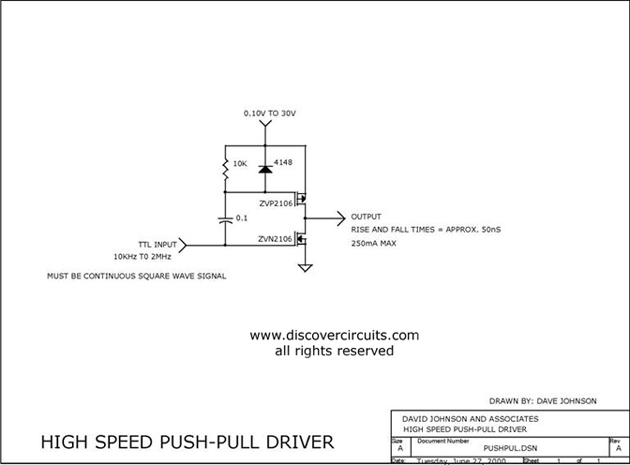

This circuit can produce high speed output signals with fast rise and full times. The unique change pump action allows the voltage of the upper P-ch device to range from millivolts to hundreds of volts. The output current is only limited by the rating of the transistors. I have used this circuit beyond 2MHz. Source: discovercircuits
