NUCLEAR_BLAST_SIMULATOR

Published:2009/7/24 2:35:00 Author:Jessie | From:SeekIC

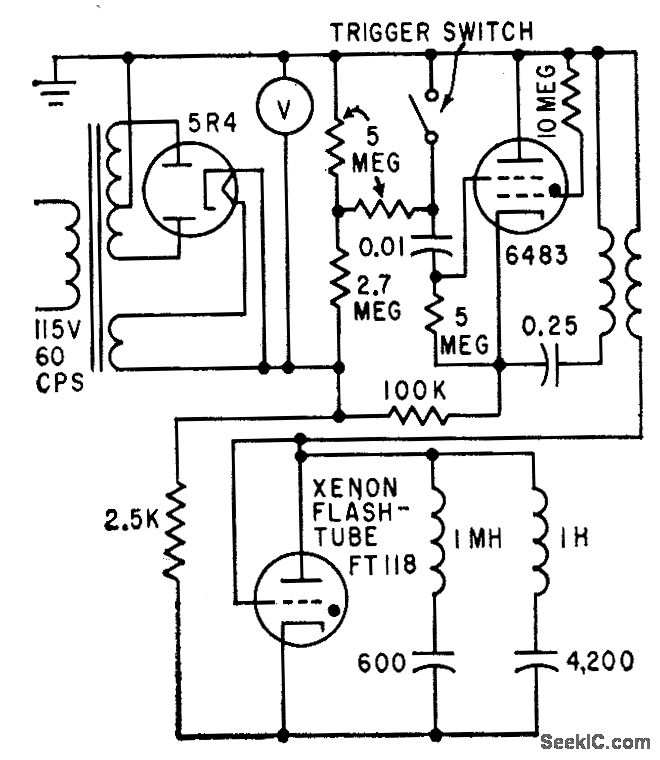

Uses xenon flashtube in double-discharge circuit to simulate thermal radiation pulse of nuclear explosion within atmosphere, which rises rapidly to first maximum, declines to minimum, rises to second maximum, then decreases gradually to zero. Used to evaluate atomic bomb alarm systems.-D. J. Baker and D. E. Thomas, Nuclear Thermal Pulse Simulator, Electronics, 32:44, p 66-69.
