NOR_FUNCTION_RESET

Published:2009/7/14 20:49:00 Author:May | From:SeekIC

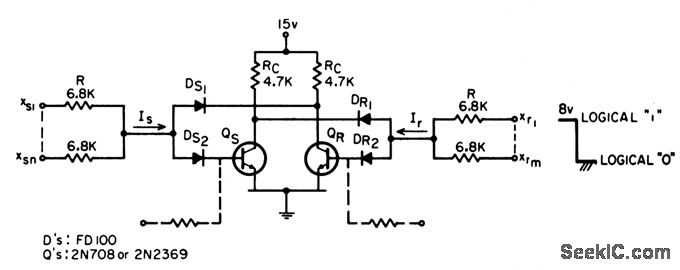

Modified flip-flop is set or reset when all input signals are low, corresponding to nor-function of input signals rather than the usual or function,－L. Mercurio, Flip-flop Operated by Input Signal NOR, EEE, 3:12,p 65.
