NOR_CIRCUIT

Published:2009/7/16 5:04:00 Author:Jessie | From:SeekIC

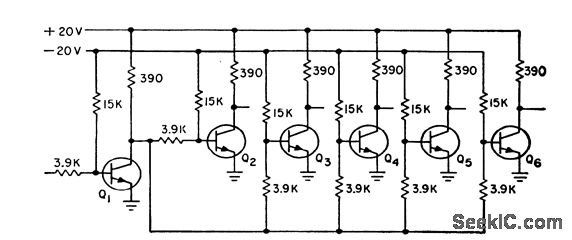

With 2N834 epitaxial mesa transistors, turn-on time. is 80 nsec, and turn off 90 nsec, as compared to 111-nsec turn-on and 140.nsec turn-off for nonepitaxial 2N706 mesa transistors in same circuit.-W. D.Roehr, Epitaxial Process Improves Transistor Characteristics, Electronics, 34:9, p 52-53.
