NORMALLY_ON_GTO_CHOPPER

Published:2009/7/10 23:25:00 Author:May | From:SeekIC

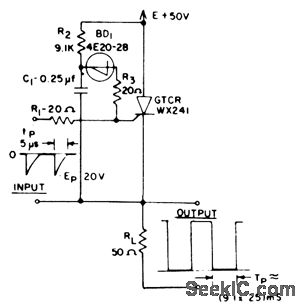

Small trigger at input removes applied voltage from load for duralion of time constant R2-C1. Handles 1kw at 1 kc.-J. W. Motto, Jr, Swilching Circuits Using the Gate Turnoff Controlled Rectifier, EEE, 11:3, p.52-55.
