NONSTALLING_FLIP_FLOP_FOR_CAPACITIVE_LOAD

Published:2009/7/14 20:44:00 Author:May | From:SeekIC

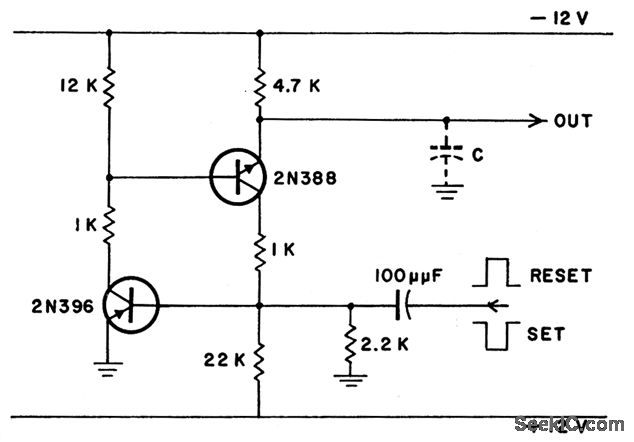

Used for transferring data into storage having heavy capacitive load, such as long connecting wires. Complementary con figuration, with load in emitter circuit of one transistor, makes stage trigger reliably in fraction of microsecond.-Non-Stalling Flip-Flop for Capacitive Load, Electronic Circuit Design Handbook, Mactier Pub. Corp., N.Y., 1965, p 213.
