NONPRECISE_PHANTASTRON_VARIABLE_DELAY_1

Published:2009/7/15 2:02:00 Author:Jessie | From:SeekIC

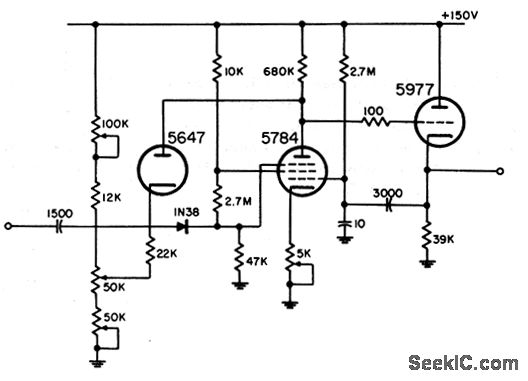

Used to delay beginning of crt sweep for expanded display. Range is 5 to 175 miles. Trailing edge of screen waveform is differentiated and used to trigger blocking oscillator through trigger amplifier.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N9-3.
