NEON_TRIODE_OFF_ON_GATE

Published:2009/7/16 1:50:00 Author:Jessie | From:SeekIC

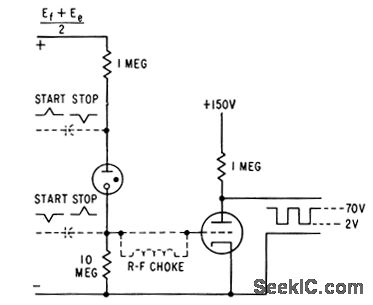

Supply voltage is set midway between firing and extinction voltages of neon tube. Neon conducts when triggered by momentary increase in voltage, and continues conducting until supply voltage is momentarily lowered below extinction voltage. Can be used to produce Low-repetition-rote pulses. Triode may be 6AV6 or 1/2 12AXT.-R. L. Lves, Neon Triode Gives Low- Speed Gate, Electronics, 31:11, p 170-174.
