NEON_PHOTOCONDUCTOR_LATCHING_CIR_CUIT

Published:2009/7/15 22:54:00 Author:Jessie | From:SeekIC

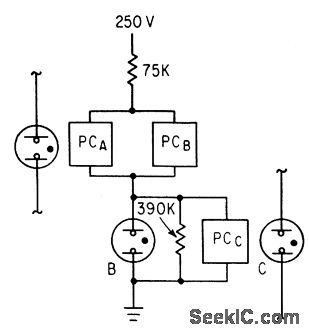

Cadmium sulfide photoconductor PC and Ne2H neon lamps give low-cost latch.When neon C is energized to provide input to PCA, neon B remains on, independent of input A, due to feedback from neon B to PCB. latch is reset by input to PCC.-J. L. Paterson, Will Neon Photoconductors Replace Relays in Low-Speed Logic?, Electronics, 36:18, p 46-49.
