ND838 typical application circuit

Published:2011/7/5 20:43:00 Author:Christina | Keyword: typical application | From:SeekIC

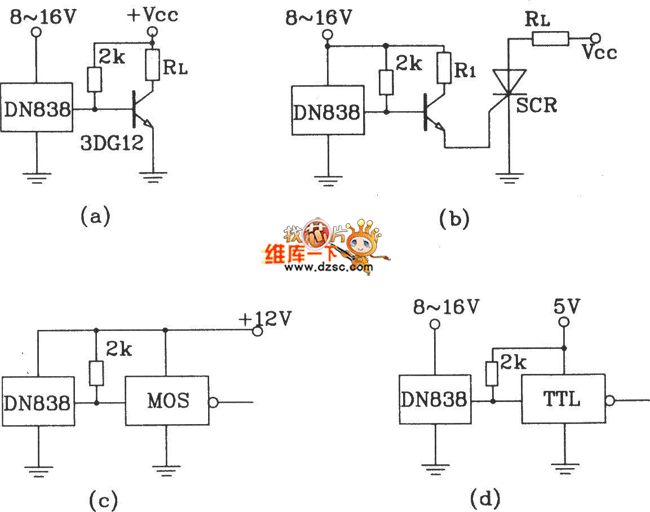

The outputs of figure (a), (b), (c), (d) can directly drive the transistor, the SCR, the relay, the CMOS circuit and the TTL circuit.
