Medium Power 40KHz Ultrasound Transducer Driver

Published:2012/9/6 20:09:00 Author:Ecco | Keyword: Medium Power, 40KHz , Ultrasound Transducer Driver | From:SeekIC

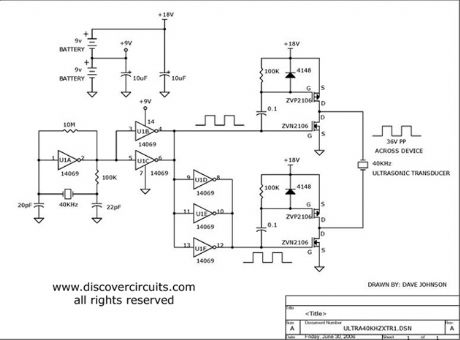

This crystal controlled circuit drives a 40KHz piezoelectric transducer with a 30v peak to peak signal. Source: discovercircuits
