Maintenance circuit diagram of Quartz lamp circuit

Published:2011/7/1 2:57:00 Author:Ecco | Keyword: Maintenance , Quartz lamp | From:SeekIC

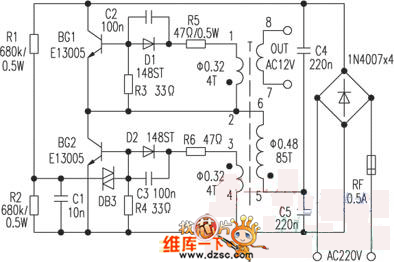

Quartz lamp is widely used in various indoor places of decorative lighting with the advantages of high brightness, condenser, beautiful luxurious, easy installation, low loss, high efficiency. The final stage of the circuit is a buck converter circuit transformer. 220V AC is rectified and inverted to generate about 30kHz ~ 40kHz, 12V AC to light quartz lamp (physical mapping circuit is seen as photo). T is the oscillator output transformer.
