MULTIPURPOSE_CHIP

Published:2009/7/16 3:45:00 Author:Jessie | From:SeekIC

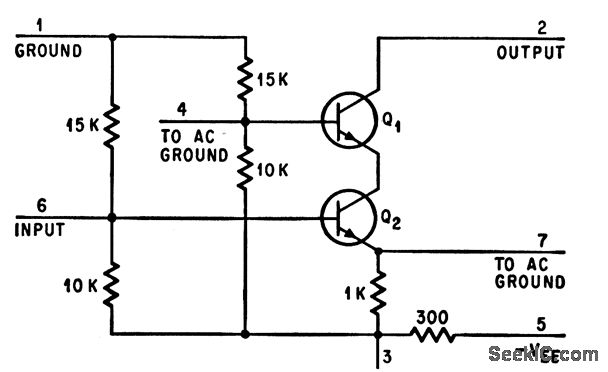

Monolithic chip con sisting of six resistors and two identical transistors serves three different functions in f-m receiver. Two transistors permit cascade amplifier configuration, giving low noise fig ure and good power gain ct high frequencies.-R. L. Sanquini, Multipurpose Chips Cut Costs of F-m Receiver, Electronics, 39:10, p 80-82.
