MULTIPLE_OUTPUTS

Published:2009/7/15 23:42:00 Author:Jessie | From:SeekIC

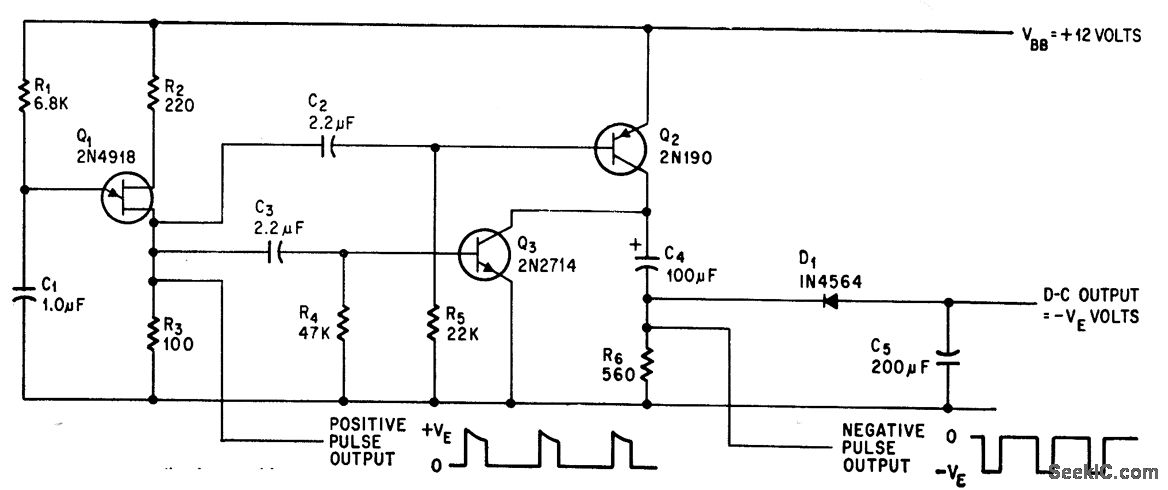

Circuit Provides negative d-c output voltage and negative output pulses, using only single d-c source .Unijuncation-transistor lator Q1 provides positive pulses, while Q2 and Q3 together invert these and drive rectifier D1 that gives -5 v at 1 ma to drive low-power amplifier that may be used in same integrated circuit.-M. H. Hussain, Circuit Inverts D-C Voltage, Electronics, 38:19, p 100.
