MOS_TO_TTL_DRIVER

Published:2009/7/2 5:14:00 Author:May | From:SeekIC

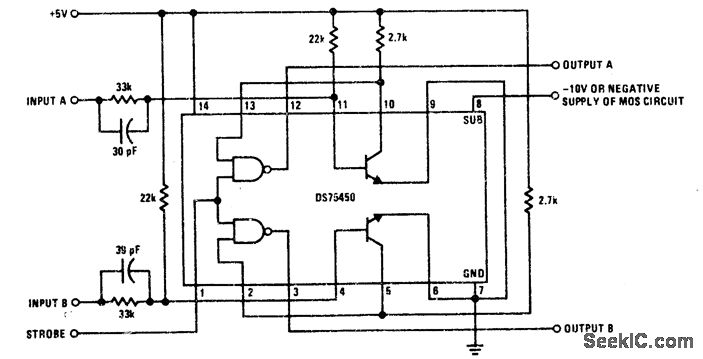

National DS75450 dual peripheral driver serves as interface between different logic types while providing highspeed switching and 300-mA output current per section Requires only single 5-V supply- Interface Databook, National Semiconductor、Santa Clara,CA,1978,p3-20-3-30
