MOS_FET_WITH_NPN

Published:2009/7/10 2:16:00 Author:May | From:SeekIC

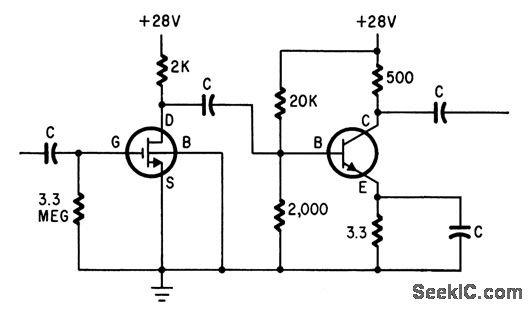

FET input stage serves as high-to-low impedance transformer for power transistor and gives very high power gain.-D. M. Griswold, Understdnding and Using the MOS FET, Electronics, 37:31, p 66-70.
