MONO_SQUARE_WAVE

Published:2009/7/2 0:30:00 Author:May | From:SeekIC

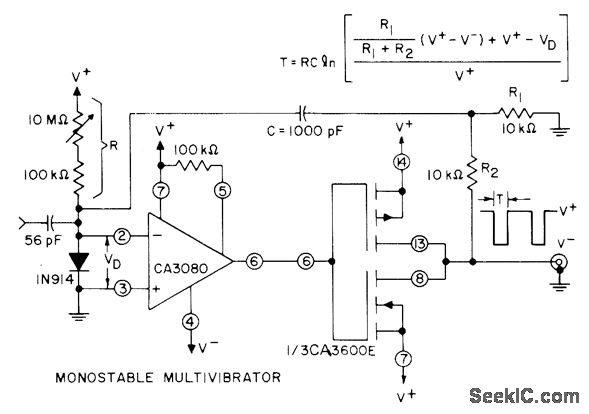

Stable characteristics of differential amplifier in CA3080 variable opamp assure pre be timing and threshold for output waveform. Opamp drives one inverter/amplifier section of CA3600E inverter array. Supply voltage range is ±3 to± 15V.- Circuit Ideas for RCA Linear ICs, RCA Solid State Division, Somerville, NJ, 1977, p 5.
