MICROCOULOMETER_CONTROLLED_TIME_DELAY

Published:2009/7/15 3:20:00 Author:Jessie | From:SeekIC

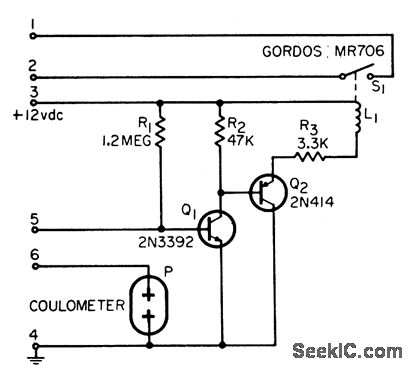

Gives delay accuracies of 1% for intervals from 30 sec to 350 hr. Delay interval ends when mercury in capillary glass tube is completely plated onto switching electrode of microcoulometer. With two delays in series, one can be reset while other is in timing mode, to give automatic reset.-Time-Delay Circuit Gives 1-Percent Accuracy, EEE, 13:9, p 94.
