MIC4680 application circuit

Published:2011/6/13 21:55:00 Author:Christina | Keyword: application circuit | From:SeekIC

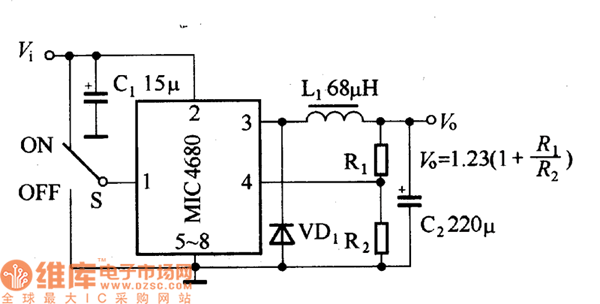

The adjustable output voltage circuit which is composed of the MIC4680 is as shown in the figure. The input voltage is 5 to 34V, the adjustable output voltage is decided by the R1 and R2. The MIC4680 application circuit
