MEASURING_SWITCHING_TIME_OF_IC_GATE

Published:2009/7/16 3:41:00 Author:Jessie | From:SeekIC

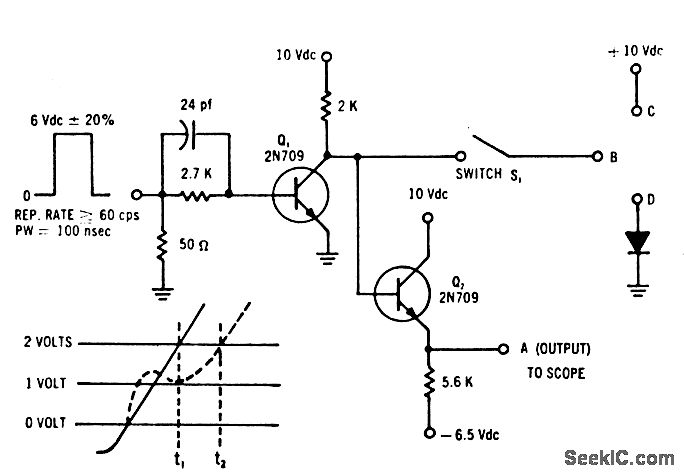

Used for and gates. To measure t1, S1 is opened, input pulse of Q1 is adjusted to give Q1 output fall time of 3 nsec/v slope for 2.5 v, and S1 is closed to measure t2.-Integrctted Circuits, FEE, 12:3, p 78.
