MEASURING_INTEGRAL_OF_CURRENT_PULSES

Published:2009/7/16 4:13:00 Author:Jessie | From:SeekIC

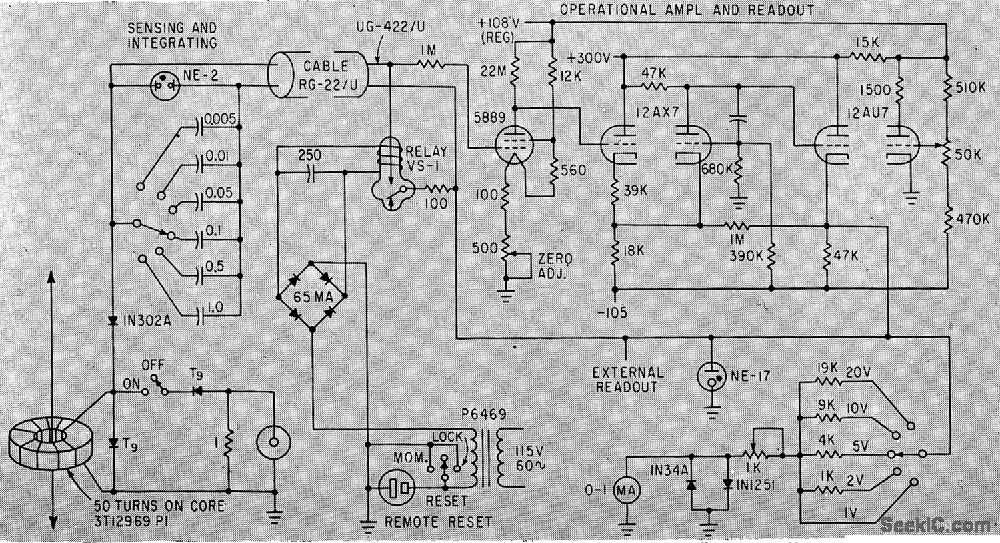

Gives current integral of one or more pulses, for measuring quantity of electricity in coulombs, regardless of pulse shape and independently of ground connection or circuit potential. Commercial d-c electrometer may be used in place of operational amplifier. Range switch is at pickup.-J. F. Howell, How to Measure Coulombs in Irregular Pulses, Electronics, 35:32, p 72-73.
