MC145162 PLL modulation integrated circuit diagram

Published:2011/7/24 21:37:00 Author:Ecco | Keyword: PLL modulation | From:SeekIC

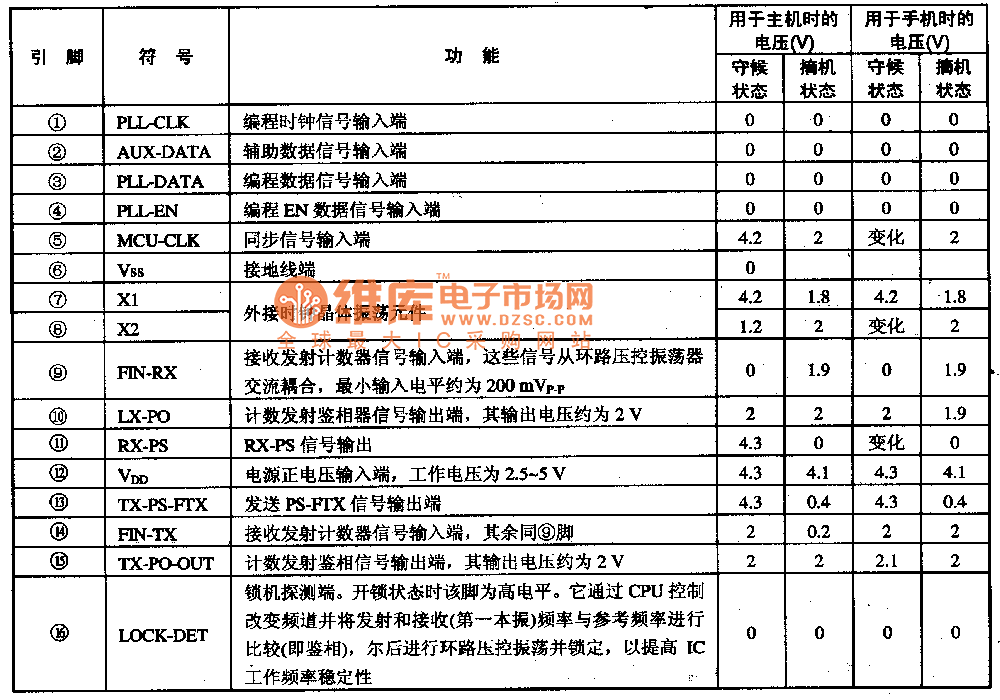

MC145162 programmable PLL frequency synthesizer modulation, demodulation IC is widely used in wireless communication receiver demodulation system. 1 Features and functionsMC145162 integrated circuit contains the transmitter and receiver signal processing circuit, clock oscillation circuit, phase-locked loop control circuit. It is mainly used to complete the wireless signal receiver, transmitter frequency controlling and locking. 2 pin functions and data MC145162 IC uses 16-pin dual in-line package, and the integrated circuit pin functions and data are listed in Table.
