MAX752 application circuit

Published:2011/6/14 2:40:00 Author:Christina | Keyword: application circuit | From:SeekIC

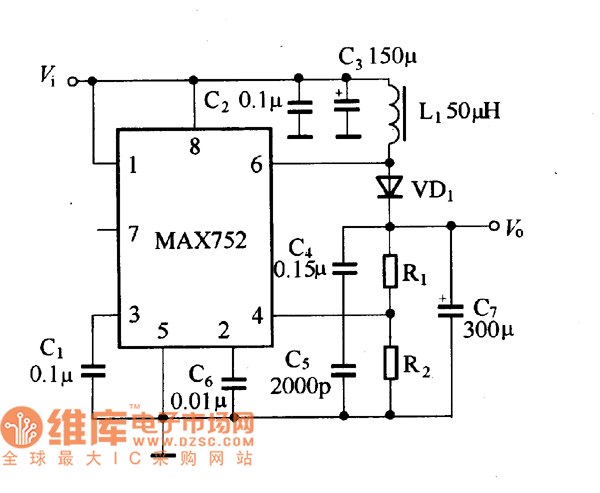

The MAX752 application circuit is as shown in the figure. In this figure, C2 must be close to the chip, this can inhibit the high voltage which is caused by the load fluctuation. MAX752 application circuit
